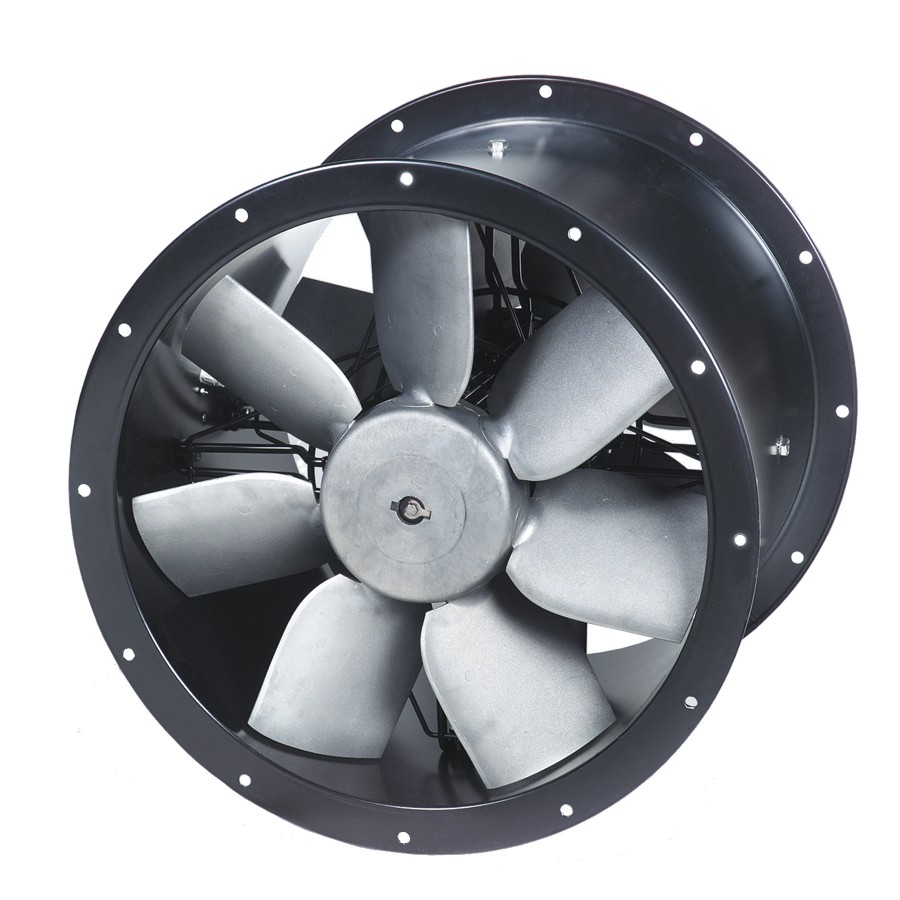

Range of cylindrical cased axial fans fitted with aluminium impellers and manufactured from high grade rolled galvanized steel and protected against corrosion by cataforesis primer and black polyester paint finish.

• Fitted with 2 contra rotating complementary impellers manufactured from die-cast aluminium.
• All models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.

Available with single or three phase 4 poles motors.

• All the motors are IP65, Class F insulation (1), equipped with thermal protection.
• Single phase motors are variable voltage (Excepted TCBBX2/4-630).
• Three phase motors suitable for inverter control.
• Electrical supplies:
• Single phase 230V-50Hz (Capacitor located inside the wiring terminal box)
• Three phase 230/400V-50Hz.
• (1) Working temperatures from -40ºC up to 70ºC.
