PIV ONE Plus+ – Loft Mounted Positive Input Ventilation Unit with Heater & Advanced Control – Elta

£486.00 ex. VAT

Category:

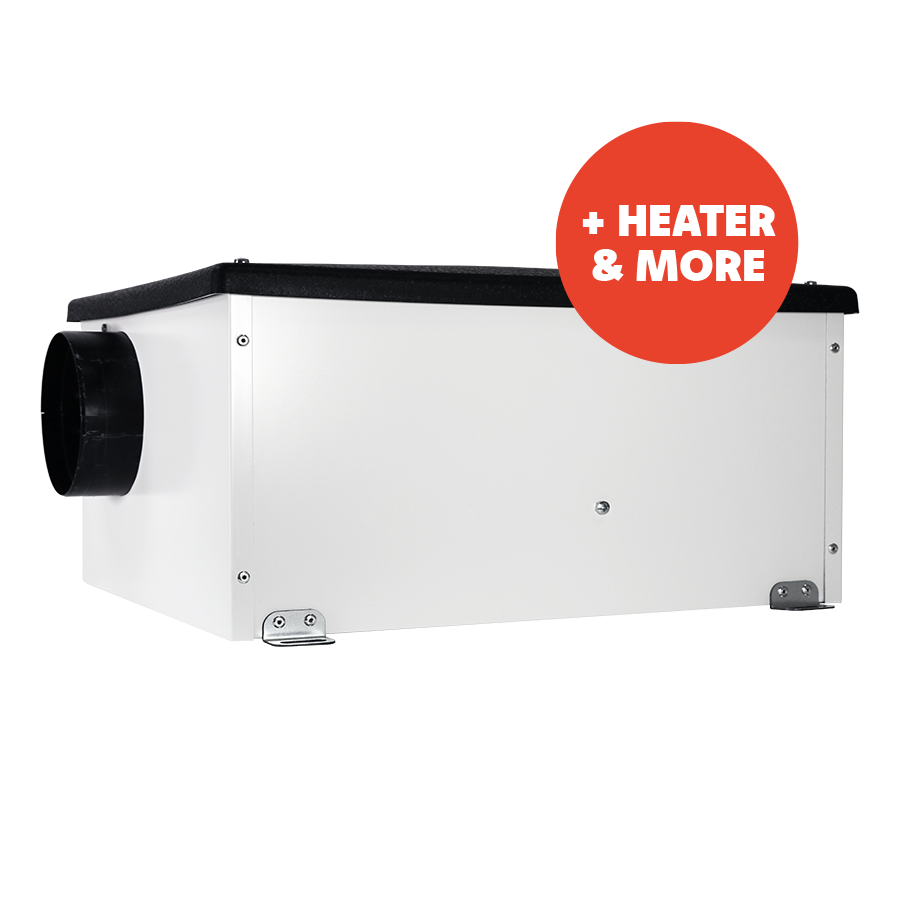

PIV ONE Plus+ – Loft Mounted Positive Input Ventilation Unit with Heater & Advanced Control – Elta

The PIV ONE Plus+ positive input ventilation system provides fresh, high-quality filtered air whilst effectively solving condensation issues and diluting harmful pathogens. Installation is easy and it’s also incredibly cost-effective.

This advanced system operates continuously to maintain a fresh and healthy indoor environment. When the humidity threshold is detected, the fan automatically boosts its speed, effectively reducing excess moisture and preventing condensation build-up. This intelligent feature ensures optimal air quality, minimises the risk of mould and mildew growth and promotes a comfortable living space.

FEATURES AND BENEFITS

  • The Plus+ model brings further enhancements to our standard model:
    • Heating element: An integral heater automatically tempers the incoming air when needed.
    • Standby mode: Automatically activates to prevent undesired warm air from entering the dwelling (e.g. during summer).
    • Heat recovery mode: The unit can be set to increase its speed if your loft has benefitted from solar gain, bringing in more warm air.
    • Control: Remote selection of the speed and heating element via an optional dedicated control switch.

Highly effective at reducing condensation and improving indoor air quality.

  • Double filtration as standard, ensuring that the incoming air is clean; removing dust, pollen and external air pollutants.
    • The external washable pre-filter features an integral magnet system to remove and clean easily (without the need for tools) . This pre-filter stops dust from being pulled into the primary filter, which would restrict filtration and reduce the filter’s lifetime.
    • Internal ISO Coarse 60% (G4) filter as standard, perfect for dust, mould spores and general pollutants.
    • For high-traffic areas, this can be upgraded to an IAQ filter to remove diesel fumes.
  • Discreet ceiling diffuser with adjustable blanking plates to direct the airflow to suit the needs of tenants.
  • Pre-wired, pre-mounted fixing points and multiple modes of operation selectable at the time of deployment mean a fast, versatile installation.
  • Acoustic self-extinguishing foam lining for sound attenuation.

SPECIFICATION

  • Galvanised sheet steel casing, powder-coated in white (RAL 9010).
  • Durable, solid ABS plastic top cover.
  • The unit is designed for continuous running with a highly efficient EC motor which has integral thermal protection, is mounted on sealed-for-life ball bearings and anti-vibration supports.
  • Forward curved centrifugal impeller is dynamically balanced and directly driven by the motor to provide a smooth airflow through the unit.
  • The top cover is easily removable for inspection and maintenance.
  • Integral 500w heating element.
  • Acoustic self-extinguishing foam lining for sound attenuation.
  • IPX4 protection degree.
  • Modern design ceiling diffuser made of high-quality ABS technopolymer.
  • Supplied with 2.5m flexible duct to connect ventilation unit and diffuser.

PRODUCT PDF

Overview

Installation & Maintenance Manual

Brand

Elta
