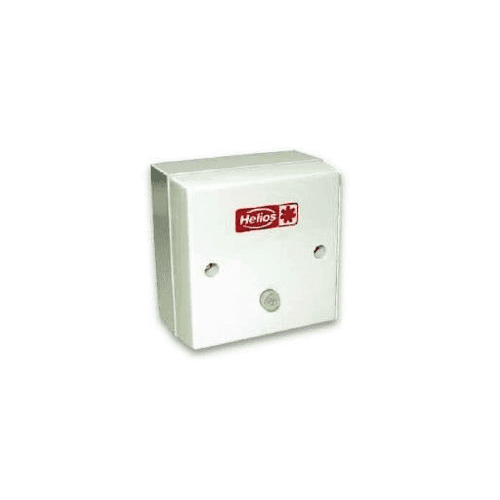

PIR – Passive infra red sensor – Helios

PIR – Passive infra red sensor – Helios

Overview:
Ideally suited to the operate fans up to 6 amp rating. the sensor detects the presences of occupants in a room and switches on the fan and then runs on for a period once the room is empty.

Application:
To operate a fan when a room is empty and shortly afterwards. A really effective energy saving device operating the fan only when needed.

-Main Feature:
– Automatic operation..
– Run on when occupants leave the room
– Current up 6 amps.
– Hemispherical sensing over 170 degrees.
– Can be wall or ceiling mounted.
– Supplied in a surface mounted terminal box
– Fits a single gang surface or recessed electric box.

Specification
Max. current  6 Amps
Power 240v/50Hz/1ph
Dimensions 80 x 80 x 15 mm

PRODUCT PDF

Helios Standard Range Catalogue 4.0 PIR
