MTP 50 – 153133 – PWM control – Ruck
£83.20 ex. VAT
MTP 50 – 153133 – PWM control – Ruck

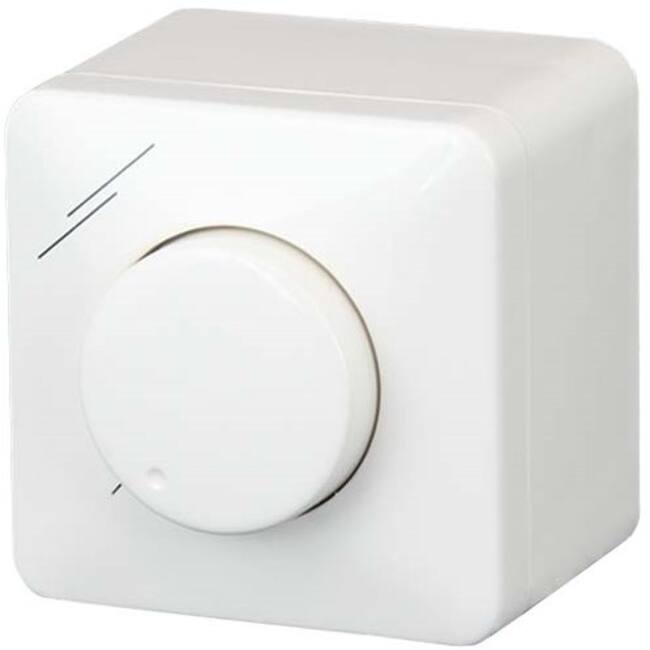

The Ruck® MTP 50 is a multifunctional potentiometer for Ruck® fans. Multifunctional means that multiple outputs are possible. The ventilation speed of the fan can be adjusted with this potentiometer. The potentiometer MTP 50 is suitable for both surface and recessed mounting. Furthermore, the operation is suitable for ambient temperatures up to 40 °C and the MTP 50 has the protection class IP 44. The switch can easily be connected using the supplied wiring diagram. More technical information about this product can be found in the annex under the “Documents” tab.
- Potentiometer with multifunction output
- 230 VAC ±10 % / 50-60 Hz
- Selectable output: 1-10 VDC / 2-20 mA / 10-100 % PWM
- Min. and max. output value adjustable
- Max. ambient temperature 40 °C
- Surface and flush mounting
PRODUCT PDF
Brand
Ruck
