Merlin WDP System – BREEAM & Water Leak Detection – S&S Northern

Merlin WDP System – BREEAM & Water Leak Detection – S&S Northern

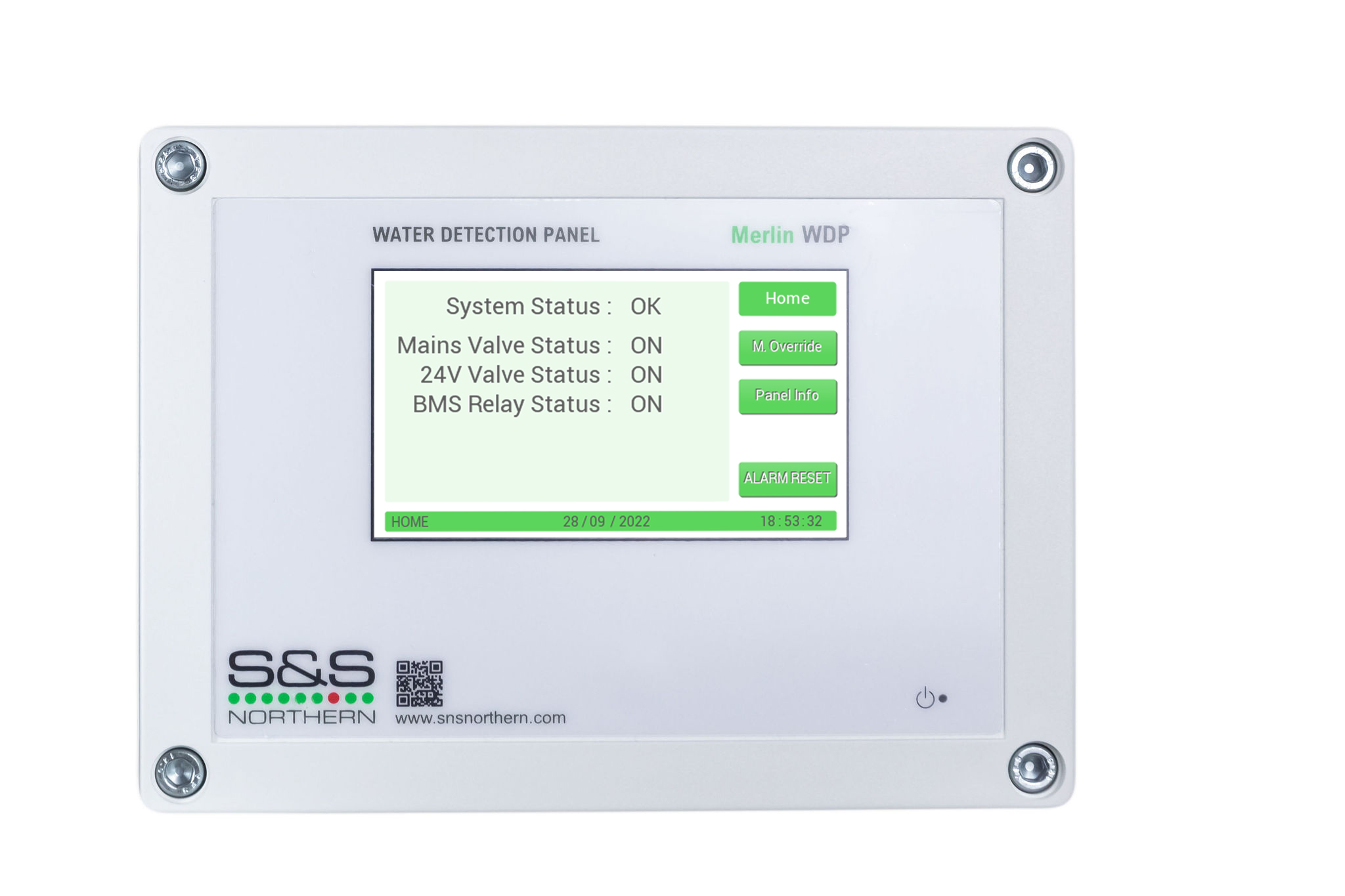

The Merlin WDP is a water leak monitoring system that has been specifically designed to help achieve the requirements of 2018: 1.0 BREEAM UK New construction (non-domestic buildings).

The WDP system will allow designers, M&E contractors and developers to achieve the ‘Credit’ available to reduce the impact of water leaks that may otherwise go undetected.

All the leak detection water meters and solenoid valves are WRAS-approved.

The system is designed to monitor water flowing through a pulse water meter. If the volume of water reaches the pre-set limit (customer adjustable) the system can isolate the mains water pipe, therefore limiting the amount of water and leak damage.

• Achieves one credit from BREEAM WAT 03
• Timer & programmable clock built in
• Two stage monitoring for occupied and unoccupied buildings
• BMS output available
• 2 zone input for reading 2x water meters (boundary and incoming)
• Volt free normally closed input for emergency stop buttons, fire alarm & security systems
• Remote sounder strobe output
• 230VAC & 24VDC outputs for water solenoid valves

PRODUCT PDF:

Merlin WDP
