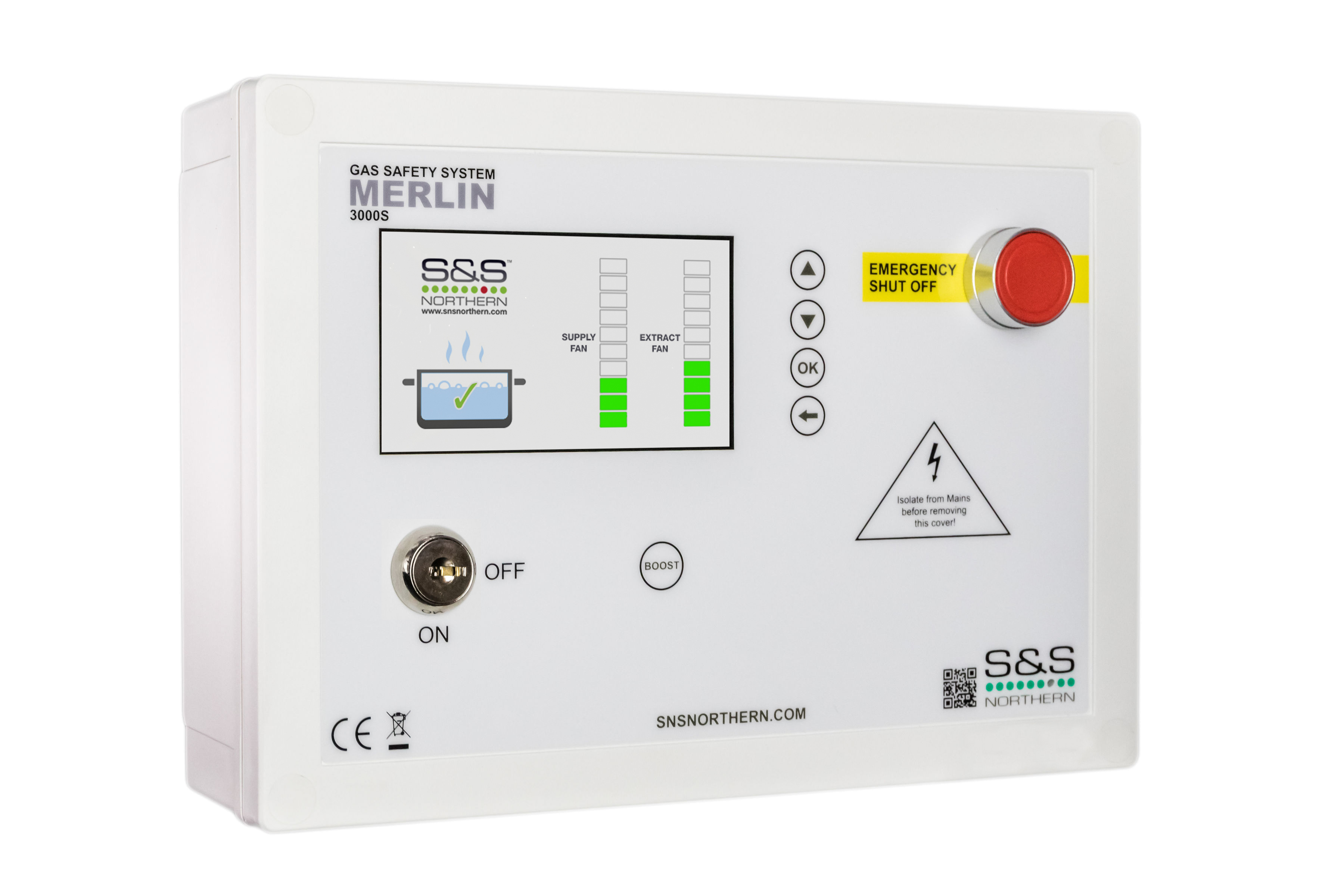

The Merlin 3000S is an energy saving system designed specifically for commercial kitchens. The system acts an interlock between the ventilation and the gas solenoid valve, while also varying the speed of the ventilation via a 0-10vdc output.

The Merlin 3000S system has 2 built-in 0-10VDC outputs. This is designed to vary the speed of the ventilation system(s) based on either, real-time gas usage via a turbine gas meter, Carbon Dioxide (CO₂) levels in the area, smoke/steam detection in the canopy using optical sensors or heat detection in the extract ductwork using a thermostat. For the best and most accurate results, all should be used together but any combination of the 4 sensors can be used.

As the CO₂ or gas usage increases in the commercial kitchen, the Merlin 3000S will increase the speed of the ventilation system to provide the perfect cooking environment. Conversely, when only minimal gas is being used and the CO₂ levels are low, the Merlin 3000S will reduce the speed of the ventilation systems, saving energy and money.

The optical sensor will increase the ventilation should it detect excess smoke or steam in the canopy along with the duct mounted heat sensor to monitor excess heat in the duct.

The Merlin 3000S also carries out its duty as a traditional ventilation interlock and gas pressure proving system alongside the ventilation on demand capabilities. This allows for one single small control panel in the kitchen, freeing up valuable real estate on the kitchen walls.
