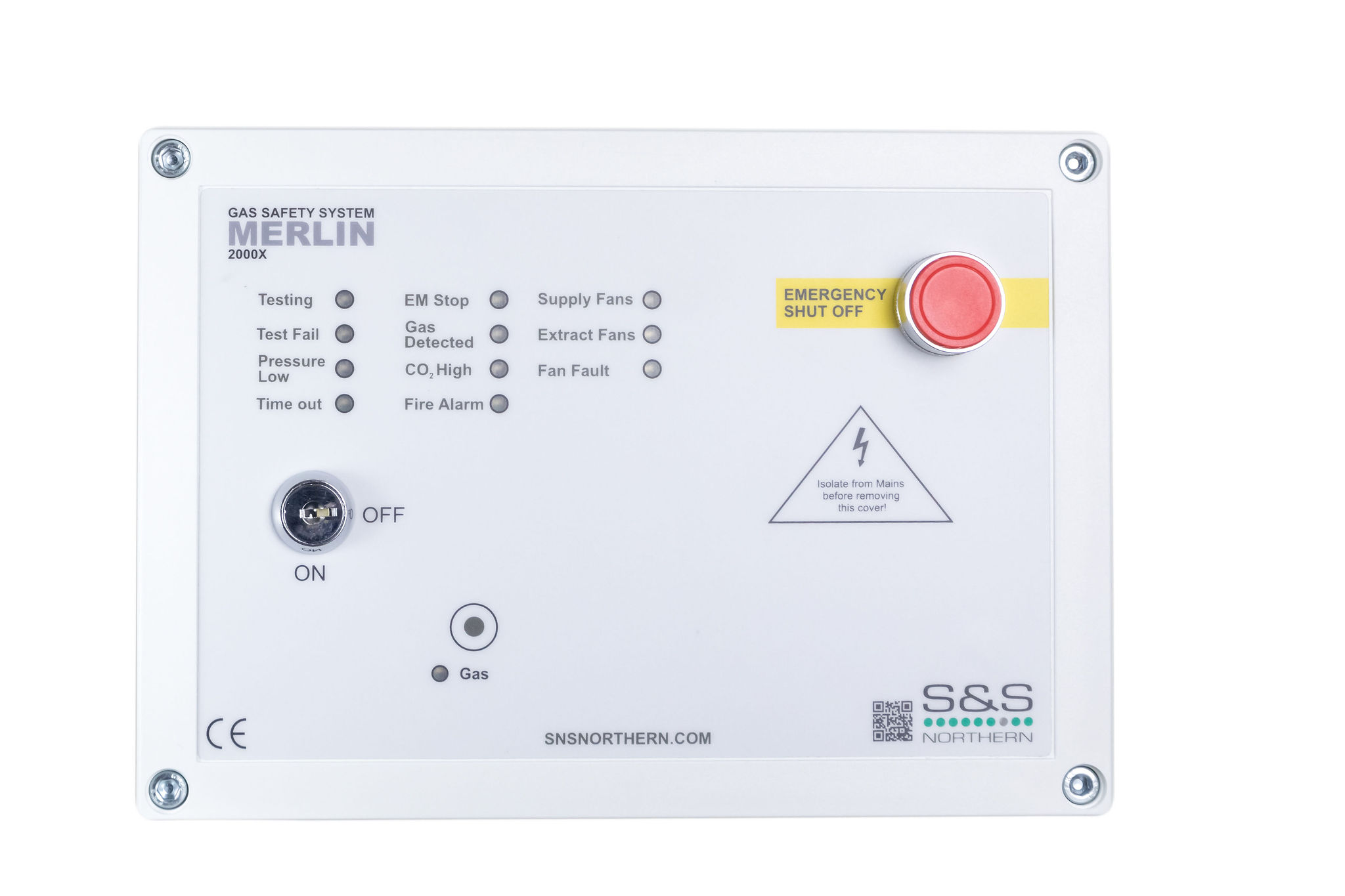

Merlin 2000X – Panel incl. Gas Pressure Transducer – S&S Northern
The Merlin 2000X is the ultimate gas pressure proving & ventilation interlock system, specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do not have flame failure devices fitted, therefore gas proving is a requirement.
The Merlin 2000X system uses two unique built in current monitors which displays the exact fan current, in order to interlock with the ventilation with precision accuracy. The system is compatible with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.
