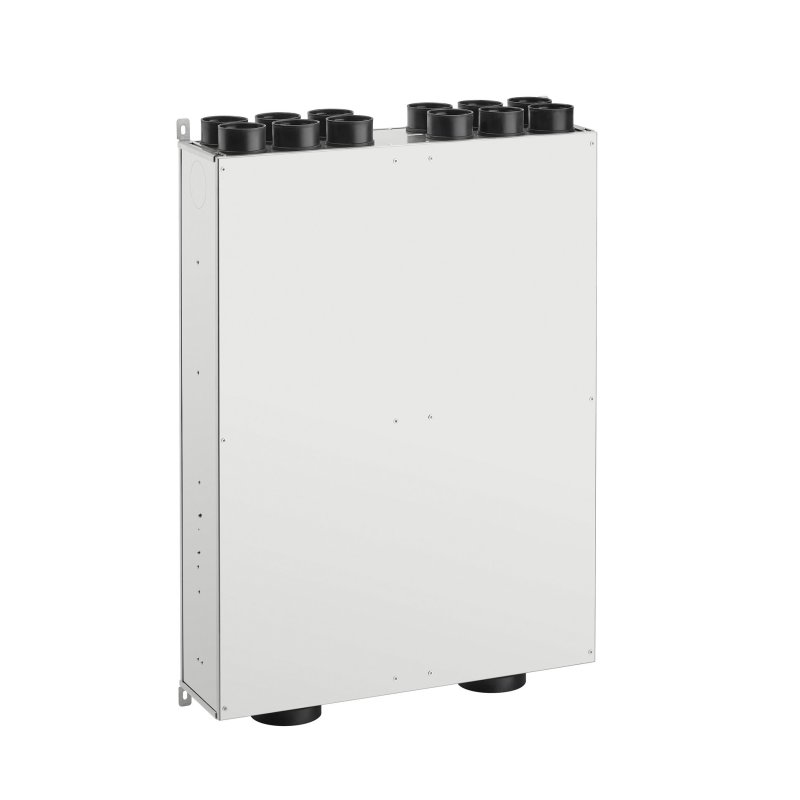

KWL-MZB 125/125 – KWL MultiZoneBox – Helios
Volume flow control, sound insulation and distributor in a compact unit. Housing made of galvanized sheet steel including4 mounting brackets. Can be mounted on the wall (vertical or horizontal) or ceiling. One chamber each for supply and exhaust air. Inlet connection for exhaust and supply airDN125. Outlet connection DN125, arranged at the front. 1 x additional connection option for DN75 on each air side, digital inputs for external control (GLT) on the side. Potential-free output for controlling external functions, such as enabling heating function, enable cooling function, fault messages. Connection option for optional accessories such as manual controls (KWL-MZB-BE, -BET) and air quality sensor (-VOC) available. Can be used for supply air LEFT or RIGHT Area ofapplication 40 m3/h – 220m3/h Power consumption 6 watts Voltage 1 – 230 V / 50 Hz Dimensions mm (W x H x D) 722 x 1040 x 200 Weight 25 kg.
