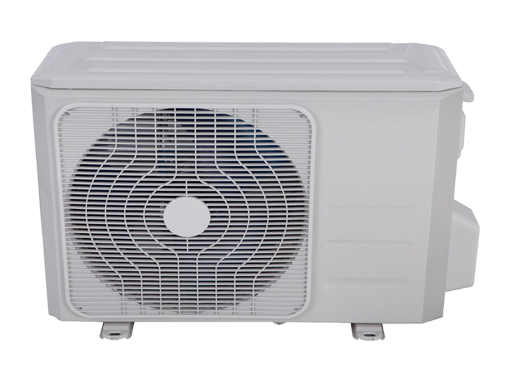

The EASY fit split air conditioning units are perfect for both residential and commercial use. The KMS4MIO/X1C is a highly energy efficient, easy to install, multipurpose multi wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

• Super energy efficient
• Compact design – one outdoor unit supports up to three indoor units

Mix & Match Units to Create a Perfect Climate Control Solution

Our multi split system air conditioning units consist of one to three indoor units, sold separately, all powered by one outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool.

Combinations for up to 4 Units

1 Unit:

• 9000 BTU
• 12000 BTU
• 18000 BTU

2 Units:

• 9000 BTU + 9000 BTU
• 9000 BTU + 12000 BTU
• 9000 BTU + 18000 BTU
• 12000 BTU + 12000 BTU
• 12000 BTU + 18000 BTU
• 18000 BTU + 18000 BTU

3 Units:

• 9000 BTU + 9000 BTU + 9000 BTU
• 9000 BTU + 9000 BTU + 12000 BTU
• 9000 BTU + 9000 BTU + 18000 BTU
• 9000 BTU + 12000 BTU + 12000 BTU
• 9000 BTU + 12000 BTU + 18000 BTU
• 12000 BTU + 12000 BTU + 12000 BTU

4 Units:

• 9000 BTU + 9000 BTU + 9000 BTU + 9000 BTU
• 9000 BTU + 9000 BTU + 9000 BTU + 12000 BTU
• 9000 BTU+ 9000 BTU + 9000 BTU + 18000 BTU
• 9000 BTU + 9000 BTU + 12000 BTU + 12000 BTU
• 9000 BTU + 9000 BTU + 12000 BTU + 18000 BTU
• 9000 BTU + 9000 BTU + 18000 BTU +18000 BTU
• 9000 BTU + 12000 BTU + 12000 BTU+ 12000 BTU
• 9000 BTU + 12000 BTU + 12000 BTU+ 18000 BTU
• 12000 BTU + 12000 BTU + 12000 BTU + 12000 BTU
• 12000 BTU + 12000 BTU + 12000 BTU + 18000 BTU

Where

• 9000 BTU= KFR-23IW/X1c-MIU
• 12000 BTU=KFR-33IW/X1c-MIU¸ KFR-37CIW/X1c-MIU
• 18000 BTU=KFR-53IW/X1c-MIU¸ KFR-57CIW/X1c-MIU¸ KFR-50QIW/X1c-MIU

*Each indoor unit can run up 25 meters pipe to outdoor unit (Additional Refrigerant Required)

*Total pipe run can run up to 60 meters (Additional Refrigerant Required)

• Width 990 mm
• Depth 345 mm
• Height 965 mm
• Net Weight 80 kg
