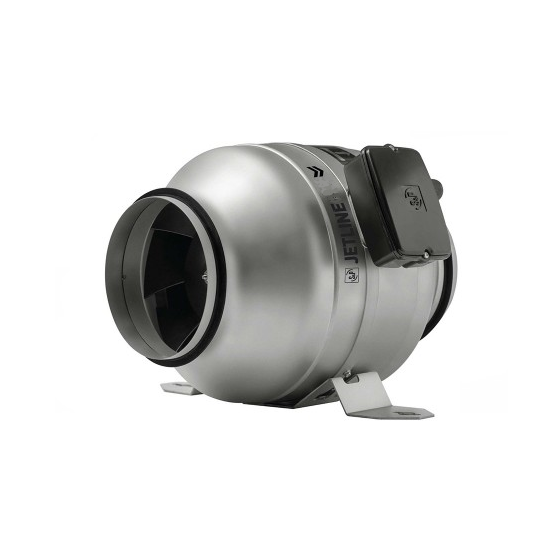

JETLINE 100 – Soler and Palau – Centrifugal In-Line Fan

JETLINE 100 – Soler and Palau – Centrifugal In-Line Fan

Series of inline fans for round air ducts, designed for high aerodynamic performance with very compact profiles and very low noise levels. The series comprises five diameters and covers an air flow range of 260 to 1080 m3 / h.
Flat, compact housing made of galvanized steel sheet. The terminal box and mounting bracket do not increase the profile of the product.
Optimized impeller, guide vane and exhaust diffuser design made of sprayed plastic to increase performance and reduce noise. Airtight connection between the galvanized steel housing and the plastic guide vane to prevent air leaks.
Rubber gaskets on the flanges to improve the air tightness of the channels. Silent block between the motor and the holder to reduce the vibrations of the motor and to reduce the sound level of the installation, also with regard to speed control.

Motor
Equipped with an external single stage rotor AC motor:
– 220-240V 50 / 60Hz, Class F, IP 44
– Voltage adjustable.
– Thermal protection with manual reset.
– Working temperature: -20/60 ºC

Product PDF:

JETLINE – S&P
