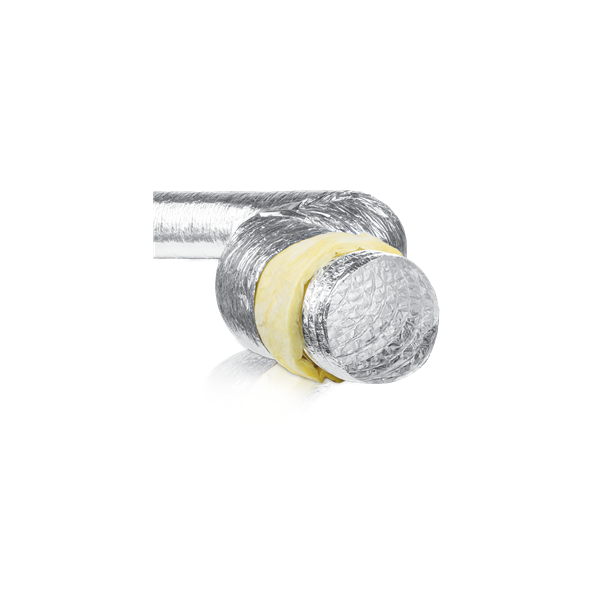

Insulated Flexible Duct – 280mm Diameter
£56.86 ex. VAT
Insulated Flexible Duct – 280mm Diameter
- Inner Configuration: 1 ply Aluminum + 2 plies Polyester Jacket
- Configuration: 2 plies Aluminum + 1 ply Polyester
- Ducting to the fan or filter can be achieved by sing duct tape and/ or quick release clamps
- An air tight seal is required to gain the full efficiency of the fan in use so we recommend using tape and strangle banding.
- Supplied boxed in 10 metre lengths and is of European quality standards, NOT the Chinese product others may sell.
- Also available in 6 meter PVC type flex and 10 meter insulated flex
Product PDF:
| Specification | |
| Wire | Bronze coated steel wire |
| Wirepitch | 40 mm ( Ø ? 127 mm) |
| Thickness | 100 ? |
| Temperature Range | 30 °C / + 150 °C |
| Max. Rated Velocity | 30 m/s |
| Max. Rated Positive Pressure | 3000 Pa |
| Available Diameters | 82 mm 800 mm |
| Length | 10 m |
| Packing | Single Cardboard Box |
| Certification | Class 0 (BS Part 6 & 7) |
