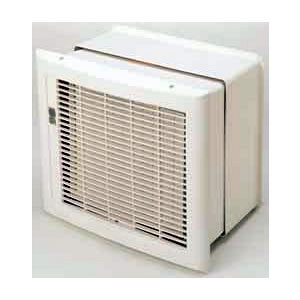

HVE-230A – STYLVENT WALL & WINDOW FAN – SOLER & PALAU

HVE-230A – STYLVENT WALL & WINDOW FAN – SOLER & PALAU

Complete range of axial flow fans for wall or window mounting applications. All the fans are supplied with tough ABS plastic grilles, shutter and single phase 230V- 50Hz motor.
All the fans are class II insulation and IPX4 rated.

The HVE-STYLVENT series comprises of 2 diameters: 230 and 300 mm, including several operating options, making them ideally suited for a wide range of general residential, commercial and industrial exhaust or supply ventilation applications.

Automatic models operated via control unit CR

HVE-230A and HVE-300A: 5 Positions:
1-Fan stopped and shutter closed
2-Fan on high speed working as air extract with shutter open
3-Fan on low speed working as air extract with shutter open
4-Fan stopped and shutter open
5-Fan in reverse high speed supplying air in the room with shutter open
To operate all these functions use the accessory CR-300
