Helios KWL-MZB 6+1-75/125 R90 – KWL® MultiZoneBox – Helios
Volume flow control, sound insulation and distributor in a compact unit.

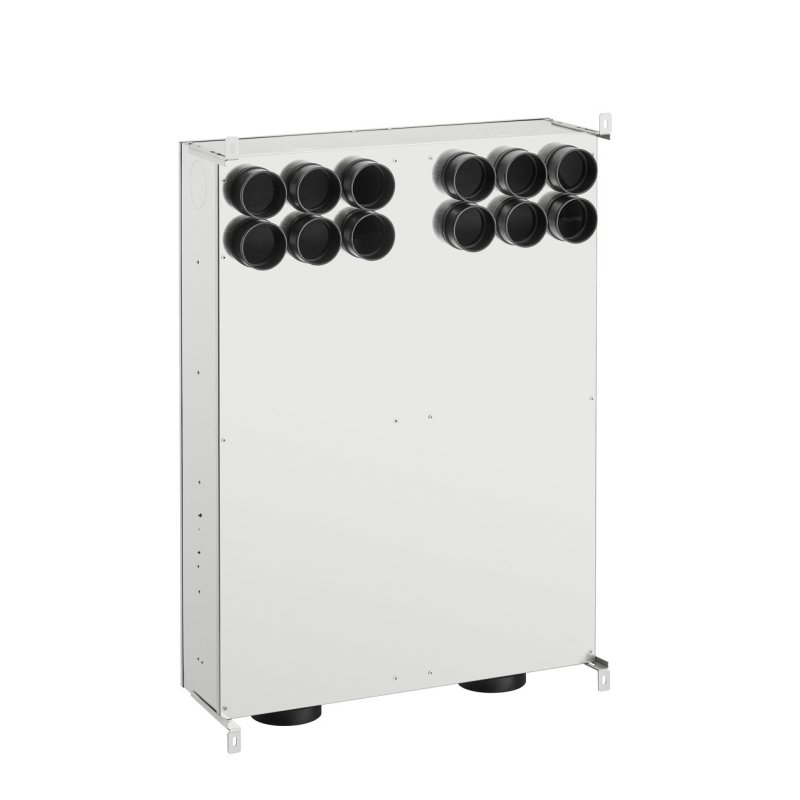

Housing made of galvanized sheet steel including 4 mounting brackets. Can be mounted on the wall(vertical or horizontal) or ceiling. One chamber each for supply and exhaust air. Inlet sleeves for exhaust and supply air DN125. 6 pieces of outlet-side connectors DN75, arranged at a 90 degree angle.1 x additional connection option for DN75 on each air side, on the side.
Digital inputs for external control (GLT)Potential-free output for controlling external functions, such as enabling heating function, enable cooling function, fault messages. Connection option for optional accessories such as manual controls (KWL-MZB-BE, -BET) and air quality sensor (-VOC) available.
Design: supply air RIGHT
Area of application: 40 m3/h – 220 m3/h
Power consumption: 6 watts
Voltage: 230 V / 50 Hz
Dimensions mm (W x H x D) 722 x 1001 x 200
Weight: 25 kg
