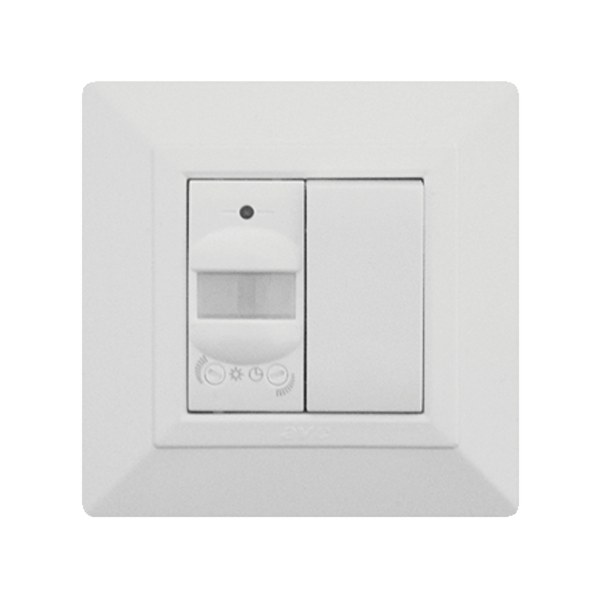

Add a PIR sensor to easily control room occupancy and efficiency by only increasing fan speed when needed.

PIR Infra-red sensor with four different operation modes:

• Automatic mode with pyroelectric sensor, operates the load automatically.
• Twilight mode, activates the load when the room light drops below a pre-set threshold.
• Semi-automatic mode, to activate the load active for a pre-set period of time.
• Manual mode.

The sensor is equipped with:

• a Fresnel lens.
• a manual control button to set the time, to set the twilight threshold and the motion detection capacity.
• a three-colour signal led to identify the selected mode.
• 110-240V~ 50/60 Hz.
• load 4A.
• Ambient temperature from 0°C to +35°C.
• Relative Humidity 90% at 35°C.

Available for surface mounting.
