Estoc EC Targe 80-630-3 – GF806306 – Powerbox Fans EC 3ph – Flakt Woods
£4,452.00
Estoc EC Targe 80-630-3 – GF806306 – Powerbox Fans EC 3ph – Flakt Woods
PRODUCT FACTS
Air flow up to 3.7 m3/s
Static pressures up to 1000 Pa
Controllable EC motors
Multiple outlet orientations motor located out of air stream
Air discharged at 90 degrees
DW172 compliant for solid fuel cooking applications
ELECTRICAL SUPPLY
220-240V/50Hz/1PH & 380-420V/50Hz/3PH
TEMPERATURE RANGE
Up to 120ºC depending on size, see electrical data table on next page for more information.
SIZES
355, 400, 450, 500, 560 and 630 mm

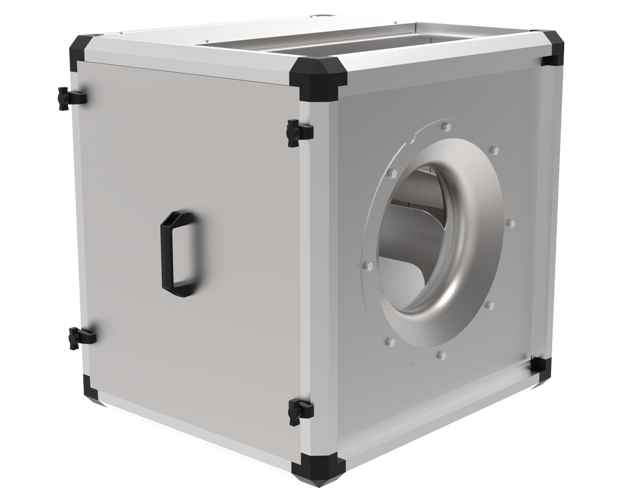

CONSTRUCTION
The casing is galvanized and made from sheet steel with double chambered aluminum profiles and plastic made corners. The acoustic insulation is made from fibre glass with a thickness of 20 mm.
Can be horizontal or vertical mounted with weatherproof hood and has removable side panels. One side of the casing is open as standard.
IMPELLER
The Estoc Targe is equipped with high efficiency backward curved centrifugal impellers made of aluminum.
MOTOR
Motor is situated out of air stream. The fans are equipped with direct driven external motors having motor protection through thermal contacts in the motor windings. The impellers together with the external rotor motors are dynamically balanced to quality standard G2,5 DIN ISO 19410.
SPEED CONTROLLER
Speed is variable using a 0-10 volt potentiometer.
PRODUCT PDF:
Brand
Flakt Woods
