Range of direct drive backward curved centrifugal cabinet fans designed for ventilation of commercial kitchens and industrial applications.

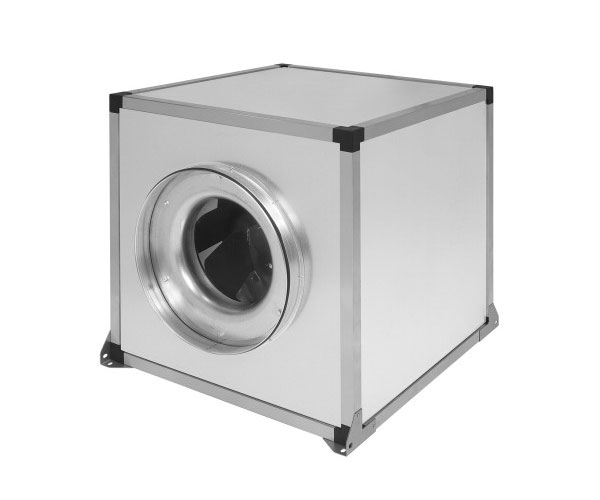

Cabinet fan manufactured from aluminium profiles and double thickness side panels internally lined with 25 mm thickness of fireproof fiberglass acoustic insulation.
Circular duct connection flange on the inlet and outlet. CVAB-N/CVAT-N incorporates direct drive backward curved centrifugal impeller,manufactured from aluminium (CVAB-N) or steel (VAT-N) sheet, with motor fitted inside the air stream.

Motors
CVAB-N
Single-phase external rotor motors 230V 50Hz, IP55, class F, with thermal protection, speed controllable by tension.
Working temperature from -0?C to 60?C.

CVAT-N
Three-phase 4 and 6 pole motors 230/400V 50Hz, IP55, class F, with thermal protection (PTC), speed controllable by inverter.
Working temperature from -20?C to 40?C.

Product PDF:

CVAT – B
