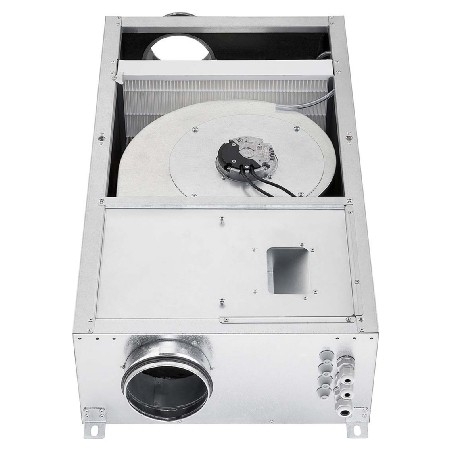

ALB EC 200 EH – Fresh Air Box – Helios
£1,360.63 ex. VAT
ALB EC 200 EH – Fresh Air Box – Helios
Fresh air boxes supply air, heating and filter in one single unit. For direct insertion in round duct and rectangular duct runs. The Helios fresh air boxes ALB provide for a pleasant indoor climate by supplying external intake air which is filtered and heated to the pre-set temperature
PRODUCT SPECIFICATION
Max Air Volume :0.194 l/s
Noise : 73 dB(A)
Watts : 5120 W
R.P.M : 2870
Application:
Pleasant indoor climate through the addition of external fresh air which is filtered and automatically heated to the specified temperature. This is achieved by the Helios fresh air boxes. Operational unit for connection to round duct systems. Suitable for a wide range of applications.
Main Features:
- Integrated air filter, fan, heater with controller and electrical terminal box.
- Thermally and acoustically insulated.
- Robust construction made of galvanised steel sheet.
- 50 mm thick mineral wool lining on all sides.
- Low-noise and high performance centrifugal fan.
ALB EC 200 EH Dimensions:
Duct Diameter : 200 mm
Height : 295 mm
Width : 510 mm
Length : 862 mm
Weight : 26 KG
PRODUCT PDF
Brand
Helios
Compatible accessories…
