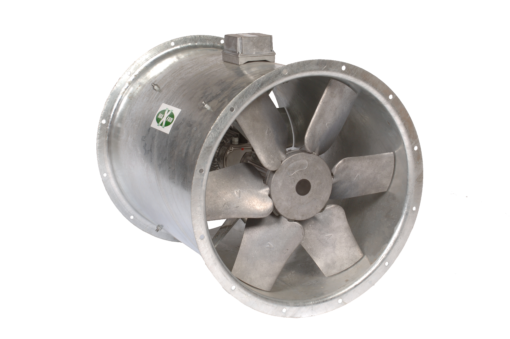

630 MAXFAN-2 3PH – Two-Stage Axial Fan – EE661476 – Flakt Woods
- High Pressure & Performance, suitable for both internal and external installation.
- Manufactured using mild steel and hot dipped galvanised finish to give high resistance to corrosion.
- Suitable for speed control 400 630mm
A highly efficient inline solution
A 2 stage fan configuration offering an in-line solution, high efficiency and high pressure development.
High Pressure & Performance, suitable for both internal and external installation.
Manufactured using mild steel and hot dipped galvanised finish to give high resistance to corrosion.
Suitable for speed control 400 630mm
The MaXfan is designed for use in commercial kitchen canopy systems, offering high pressure & performance and as standard the fan is suitable for both internal and external installation. The 2 stage MaXfan design is manufactured using mild steel and hot dipped galvanised finish to give high resistance to corrosion.
For a more compact solution, take a look at the MaXfan Compac.
- Volume flow up to 7.28 m3/s
- Static pressures up to 1082 Pa
- 400mm 630mm Dia available
- Fans tested to ISO 5801 and BS848
- Operating temperature range : -40°C to +50°C as standard
- Low installed noise levels
- Overheat protection as standard
- Motor protection IP55
