449540 – 200ZH Heat Recovery Unit – Vent Axia
Vent-Axia has been the leading manufacturer for 75 years when it comes to ventilation. With this experience behind them, it’s no surprise that they are innovators as well, continuously producing new lines with energy saving, lo-carbon products. With a vast range spanning cool air to electric heating, and everything in between, you know Vent-Axia is a name you can trust with your ventilation needs.

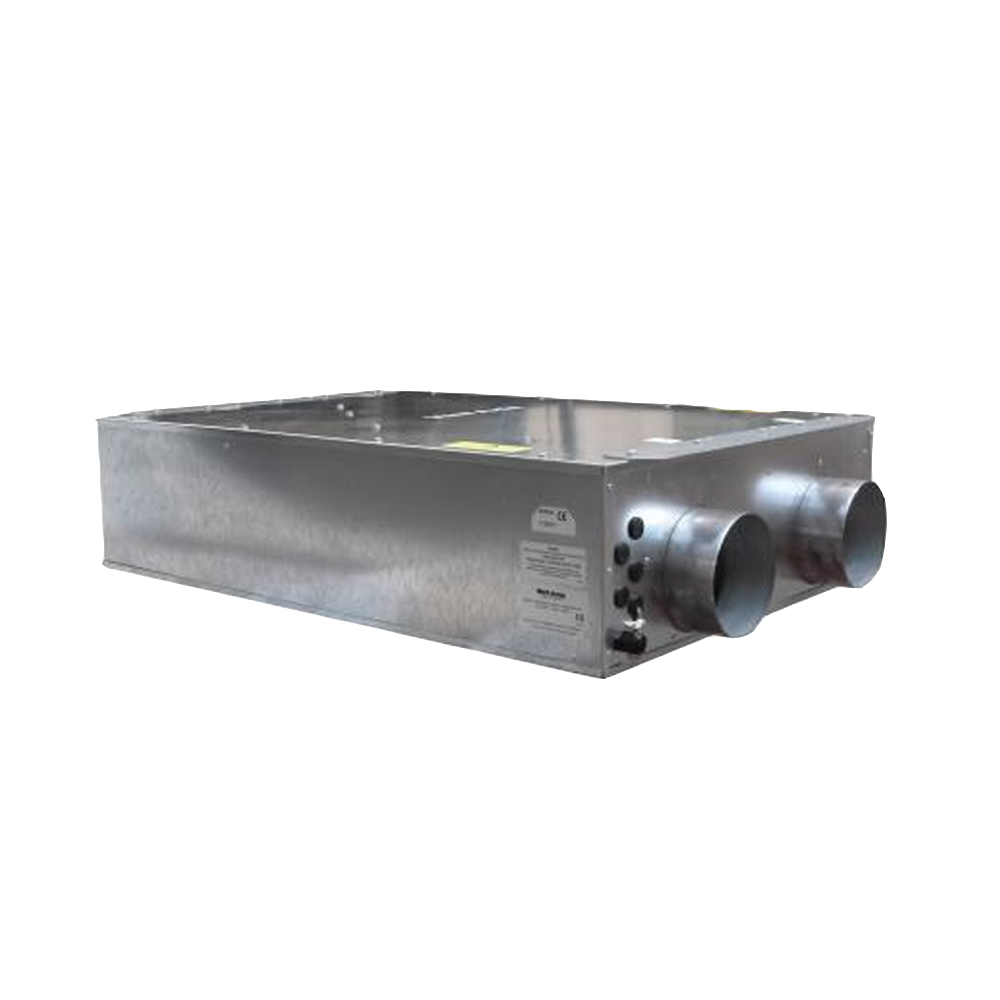

The Vent-Axia 449540 200ZH Lo-Carbon Sentinel Kinetic Horizontal is a whole-house heat recovery unit with an integral humidity sensor, which will increase the speed in proportion to relative humidity levels – helping to save energy and reduce noise. The unit has an easily accessible heat recovery cube and two Lo-Carbon energy saving EC/DC fans for a long-lasting, energy efficient performance. The 200ZH has three fully adjustable speed settings, which can be set using a digital controller.
PRODUCT BENEFITS
- Building Regulation ADF compliant
- Recognised in SAP PCDB
- Energy Savings Trust best practice compliant
PRODUCT FEATURES
- Up to 81% heat recovery whilst controlling condensation
- Programmable Summer bypass
- Digital controller for simple and accurate commissioning
- External condensate connection
- Plug and play controls; Humidistat, Ventwise, Wireless remote
- LS inputs (Light Switch)
- Self diagnosis for simplified fault finding
- Adjustable delay on/delay off timer
| Dimension | 200Hz |
| Fans|Description|Product | Heat Recovery Unit |
| Fans|Features|Cased | Y |
| Fans|Features|Number of Speeds | Variable |
| Fans|Features|Use | Domestic |
| Fans|Features|Maximum Standard Air Supply | 45 Degrees C |
| Fans|Features|Mounting | Surface |
| Fans|Features|Ingress Protection | IP22 |
| Fans|Features|Maximum Sound Power Level | 46 Db |
| Fans|Features|Reversible | N |
| Fans|Features|Air Extraction Rate m3/h | 288 M3/h |
| Fans|Features|c/w Light | N |
| Fans|Features|c/w Duct | N |
| Fans|Features|c/w Timer | N |
| Fans|Material & Finish|Material | Sheet Steel |
| Fans|Material & Finish|Body Colour | Silver |
| Fans|Material & Finish|Finish | Aluzinc |
| Fans|Dimensions|Overall Length | 895 mm |
| Fans|Dimensions|Overall Width | 570 mm |
| Fans|Dimensions|Overall Depth | 200 mm |
| Fans|Technical Data|Number of Phases | Single |
| Fans|Technical Data|Voltage | 230 V |
| Fans|Technical Data|Frequency | 50 Hz |
| Fans|General|Warranty | 5 Years |
| Fans|General|Unit Weight | 26 kg |
| Fans|Features|Ingress Protection (EF005474) | IP22 |
| Fans|Material & Finish|Material (EF001257) | Sheet Steel |
| Fans|Material & Finish|Finish (EF006569) | Aluzinc |
| Fans|Features|Mounting (EF000003) | Surface |
| Manufacturer | Vent-Axia Ltd |
| Brand | Sentinel Kinetic |
PRODUCT PDF
