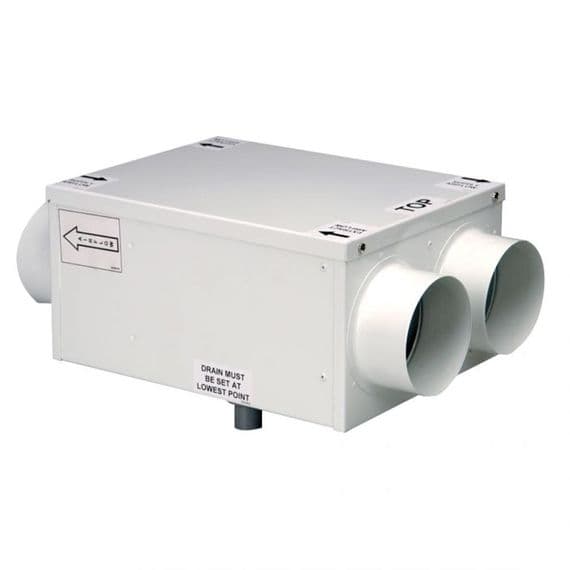

370377 – HR100R Single Room Heat Recovery Unit – Vent Axia
The HR100R is ideal for single bedroom/bathrooms, for example in hotel rooms, nursing homes etc. It features top access for loft installation; fits with standard 100mm (4″ ducting).
The HR100R comes fitted with a single 2-speed motor that provides continuous low volume ventilation with a boost option.
There are a number of different control options to manually or automatically adjust the speed from trickle to boost. The unit is designed without controls to allow the unit to be tailored to suit individual requirements.
An integral heat exchanger that transfers heat from the outgoing stale air to the fresh air supply, raising the supply air temperature whilst at the same time reducing its relative humidity.
Key Features
- This unit provides superior control of odours and condensation
- Suitable for bathrooms or for small internal rooms
- Supply and extract air ventilation with heat recovery
- Ideal for one bathroom and one bedroom
- Extract from one wet room
- Boost operation function with wall switch
Specification
- High Setting (Boost):
- Air Extraction : 66m3/hr (max)
- Air Extraction L/s : 18 L/s (max)
- Noise : 30dB(A) (max)
- Watts : 29w
- Low Setting (Trickle):
- Air Extraction : 49m3/hr (max)
- Air Extraction L/s : 13.6 L/s (max)
- Noise : 20dB(A) (max)
- Watts : 19w
PRODUCT PDF
