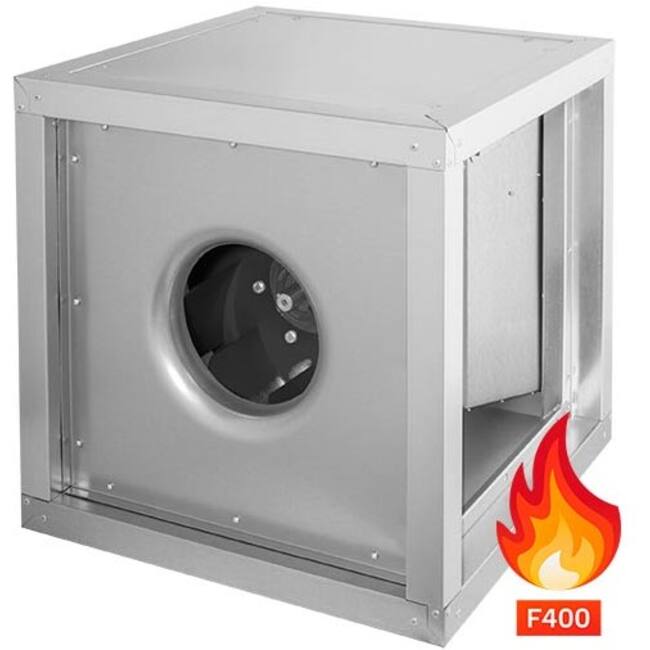

162900 – MPC 315 D4 F4 T40 – Smoke extractor box fan – Ruck

162900 – MPC 315 D4 F4 T40 – Smoke extractor box fan – Ruck

The Ruck smoke box fan (MPC DFT series) has a frequency-driven motor, this three-phase motor is mounted outside the air stream. The advantage of this is that any dirty and contaminated air (grease or smoke) is not discharged via the motor. This allows the fan to continuously handle a temperature of 200°C, and temporarily (120 minutes) even 400°C! The box fan with motor outside the air stream is therefore often used for extraction in the catering industry. Attention: the fan must be controlled with a frequency converter. If desired, the frequency converter can be controlled with a variable potentiometer.

The box fan is equipped with 30 mm insulation and has internal electronic temperature control to prevent burn out. The smoke box fan can be mounted via Ruck’s base frame and has a variable discharge direction. The MPC DFT series is available with capacities ranging from 2010 m3/h up to a maximum of 22610 m3/h. All Ruck smoke extractor fans are also F400 certified.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient box fans with EC motor outside the air stream. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

• Frequency-controlled motor outside the air stream
• Integrated electronics
• 30 mm insulation
• With condensation and grease extraction
• With adjustable speed

PRODUCT PDF

MPC D4 F4 T40 RUCK
